Eigenschaften

Technische Daten

Type: Filling Machine

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops, Other

Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka,

Condition: New

Application: Food, Beverage, Machinery & Hardware, Craft beer, Carbonated drink, Cider, Sparkling water

Packaging Type: CANS, Bottles, Aluminum can, Tin can, Pet can

Packaging Material: Metal, Aluminum can, Tin can, Pet can

Automatic Grade: Automatic

Driven Type: Electric, Servo Motor Driven

Voltage: 220V-50Hz-Single Phase, 380V-60Hz-3 Phase

Dimension(L*W*H): 1800*1200*1800mm

Weight: 1200 KG

Warranty: 1 Year, 1 Year +lifelong after-sales service

Key Selling Points: High-accuracy

Machinery Capacity: 4000BPH, Other, 6000BPH, 400BPH, 2000BPH, 1000BPH, 100BPH, 200BPH

Filling Material: Beer, Water, Juice, Carbonated beverage, Soft drink, Soda water, Cider

Filling Accuracy: 99.9%

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor, PLC, Gear, Bearing, Gearbox, Engine, Other

Product name: Beer Can Filling Machine

Function: Co2 purge, Isobaric filling, Lid seaming

Filling type: Isobaric Pressure Filling System

Capacity: 2000CPH based on 330ml Cans

Filling range: 250ml, 330ml, 500ml, 8oz, 12oz, 16oz,

Material: Food grade stainless steel SS304/316

Control System: Button control or Touch screen + PLC

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile

After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service

Zertifizierung: CE, ISO, GMP

Grundinformation

Zertifizierung: CE, ISO, GMP

Zahlung und Versand AGB

Produkt-Beschreibung

Product Overview

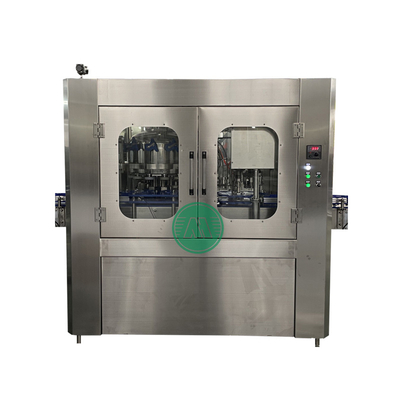

Price automatic carbonated beverage cola pet aluminum tin sealing equipment beer can filling machine

The MIC combines all of the best features of our canning systems into one: the industry leading fill technology common to all MIC systems, the seaming reliability of our MIC-12/1, and the incredibly compact footprint and simple maneuverability of the Start up ready MIC Specifically designed for not only the craft beer market but also the beverage market as a whole, the MIC is ready for virtually any beverage or can size.

MIC-12/1 Features

• Cam driven seamer with an electric stepper motor increases seam reliability with significantly easier setup and maintenance compared to pneumatic seamers
• Utilizes the same industry-leading fill head technology as all of MIC’s canning systems
• Co2 purge function and fobbing after fill makes dissloved oxygen level become less.

MIC-12/1 Features

• Simple change over between multiple can heights and widths!
• Poly-carbonate enclosure for safety and hygiene
• Count pressure filling system
• Adjustable fill level sensors make precise
• Multiple post-packaging options available
• Shrink sleeve and pressure sensitive wrap around label options available

Product Paramenters

Model/Parameter	MIC-12/1	MIC-18/1	MIC-18/6	MIC-24/6	MIC-32/8
Application	Craft beer, carbonated drink, gas beverage, cold coffee, sparkling water, cider, soda water, herbal tea, non-carbonated drinks and so on
Packing Type	Aluminum cans, Tin cans, Pet cans, etc
Capacity	2000CPH	3000CPH	6000CPH	8000CPH	10000CPH
Filling Range	250ml, 330ml, 355ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L)
Power	1.1KW	1.5KW	3.5KW	4.0KW	4.5KW
Size	*1.8M1.3M1.9M*	*1.9M1.3M2M*	*2M1.4M2M*	*2.5M1.7M2M*	*3M1.7M2M*
Weight	1800KG	2100KG	2500KG	3000KG	3800KG

Machine Advantages

Multi-row empty can feeding conveyor (optional)

Compared with turntable, we will suggest our customer to use this multi-row empty can feeding conveyor. The empty cans are very light, if you use turntable to feeding the cans through the rotating, it will fall down very easily, then block the feeding line.

Inline can rinser / can washing machine (optional)

If you want to wash the empty cans by clean water before filling, we can add this can rinser in the filling line. The twist cages are customized with your sample cans. As long as the height and diameter is different, you need to buy the extra twist cages to change.

Mic isobaric pressure filling system / counter pressure filling system

“MIC” Counter pressuring filling does not create foaming during fill, unless beer is above 40°F. Counter Pressure filling leaves 1.27CM headspace, required by can manufacturers for product expansions and potential warming during distribution. Our machine does not like In-Line filling must foam during filling to clear head space. This type of foaming will creates high dissolved oxygen in head space. Counter pressuring filling does not create foaming during fill.
Adopts high precision buffing process and food grade 304 stainless steel liquid tank. It will equipped with CIP connector as customer's demand.

Foaming device after filling

“MIC” Counter pressure can filler foaming with hot water or beer jet after filling to eliminate head space and exposure to atmosphere. In order to prevent the oxygen in the air into the can's top position. Jet foaming is the practice used by high-standard breweries. We have tested with dissolved oxygen meter, our TPO is lower than 60PPB. If client add a foaming device before seaming. The TPO will be lower than 40PPB.

How our can seaming do

The “MIC” system is a mechanism actuated, cam-driven seamer with easily adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization, the result is revolutionary.

Automatic PVC sleeve shrink labeling machine (optional)

If you want to use the blank cans without printed pattern, we can supply the sleeve shrink labeling machine to shrink the label around the aluminum cans. It also including the shrink tunnel and steam generator. Or if you want to use the sticker label to paste the cans, we can also supply the self-adhesive sticker labeling machine for you.

Collection table for finished cans (optional)

Compared with turntable, we will suggest you to use the collection table in the end, it will supply enough space for your to collect and pack the cans. It's very convenient for packing work.

Details Images

Why Choose Mic Machinery

"MIC" Made

Mic machinery Bottling/Canning Systems are 100% designed, engineered and manufactured in Ningbo, China since 1999 using experience-picked made parts.

100% concentration

We devote everything at Micmachinery Filling System with honesty and integrity, which has won us more than 300 customers and counting in both domestic and abroad.

Welcome to visit our factory !

On-call, on-point service

Our online troubleshooting teams will identify your troubles then repair them. They are available for 24hours/7days.

Our overseas engineer team can be carried out to any part of world to fix problems in your line.

Engineering and marketing step by step

We continue to innovate by listening and responding to our customers’ needs. With an emphasis on quality parts and engineering, MIC has nearly increased by 70% its sales every year since the launch of its first filling system.

You May Need

Activate Your Beer / Beverage Business with Our Expertise, Experience and Enthusiasm

Mic Machinery filling/bottling/canning solutions are tailor-made and precisely engineered to meet each of our customer’s individual needs. We hand-build every system in our facility in zhangjiagang, Jiangsu, China using experience-picked made parts.

Multiple Can Size

Multiple Can Sizes

The MIC-12/1 can be configured for nearly all available can sizes and widths! Change over between different can dimensions is a snap, requiring only a few simple tools and less than 30 minutes.

FAQ

Q1：Are you a manufacturer or trading company?

We are the manufacturer in Zhejiang, we are doing machine production over 15 years, we offer steady machine and 100% machine is running oversea..

Q2：What is the payment way of your company? ① 30% deposit of contact in advance for start production, 70% balance payment should be paid after we video inspection or SGS inspection at site, before shipment.

② 100% Irrevocable letter of credit at sight.

③ To make the machine, we need buyer to provide samples and 30% deposit of contract to start production.

Q3：Is this machine in stock or customized for us? Our machine is customized. Normally, it needs 30-40 days to deliver the goods.

Q4：What is the warranty and the maintenance you can supply? Two Year Warranty, lifetime maintenance, one year free spare parts shipping. (Not damaged by human factors.)

Q5：How can I install this machine when it arrives at our factory? We have machine manual which made for each machine, we will have machine test before shipment and make video to teach you how to adjust machine for all process, we are always available for video chat appointment for installation. We are able fly to your site for installation and training.
