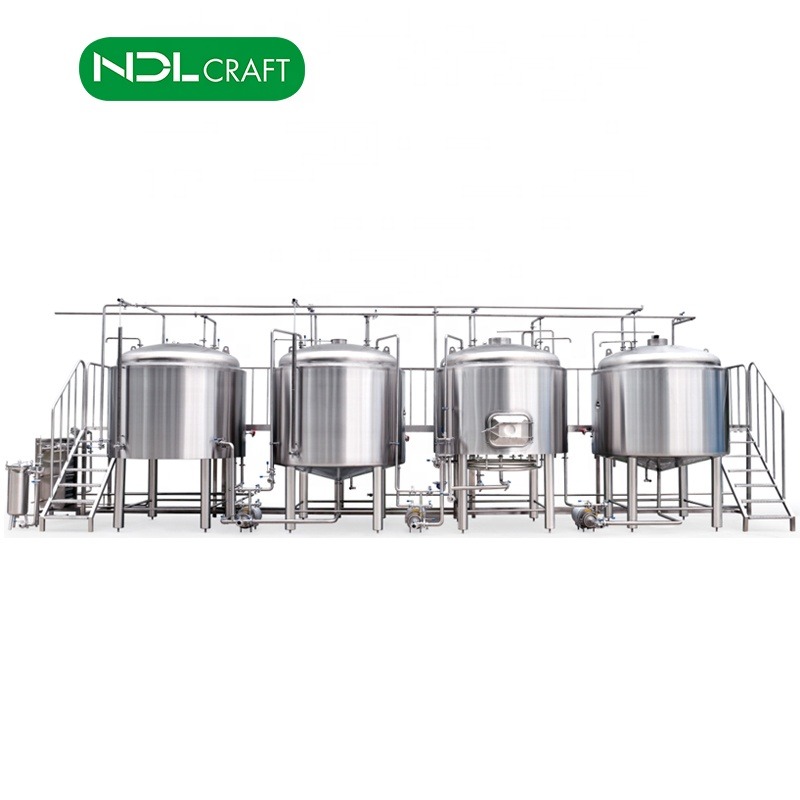

Beer Making 2000l Commercial Beer Brewing Equipment Beer Making Machine

 According to the brewing places, our beer making machine can be classified as home manufacturing equipment, hotel/ resturant beer manufacturing equipment, microbrewery equipment, commercial beer manufacturing equipment with various capacities. Beer brewing equipment is regarded as commercial beer making machine, it includes Milling unit Brewhouse unit, Fermentation unit, Chilling unit, Controlling unit, CIP unit and Water treatment unit, etc.

 Main Machine

1. Inner-jacket is 3.0MM, external-jacket is 2.0MM.

2. Brew water inlet, SS304, Connection type: fast connection

3. CIP washing equipment, SS304, comprehensive cleaning

4. Mixer motor: motor power: 1.1 KW The infinite gear motor

5. Spot lamp, used for tank lighting

6. With manway, material is SS304, circular manhole thickness 3.0mm, diameter 330*430mm, normal pressure manhole design.

7. With liquid meter, observe the liquild level in the tank samples can be taken from the level base

8. Thermometer: the iron shell metal thermometer, temperature of the tank used for observation, accuracy of plus or minus 0.1 degrees.

9. Filter plate (Activity false bottom)

10. Wort collecting pipe

11. Insulation: PU heat preservation, thermal insulation layer thickness of 80 mm

12. Supporting leg: four stainless steel legs

Beer brewing equipment fermenting system consists of Fermentation Tank and Bright Beer Tank. Fermentation Tank structure and design differs depending on fermentation process. The normal fermentation tank structure is dish head up and cone down, the used micro beer making machine is equipped with cooling installation,there is a cooling jacket on tank cone section,columnar part has two or three cooling jackets.This not only can meet the relevant requirements of cooling, guarantee cooling rate of fermentation tank, also help to precipitation and storage the yeast.

Material: Inner (SUS304)thickness: 3mm;

External-Jacket(SUS304) thickness: 2mm;

Insulation: Polyurethane-thickness: 80mm.

Cooling way: Ice water belt cooling;

Design pressure 0.3MPa; Working pressure 0.15Mpa.

Spray ball for cleaning, comprehensive cleaning.

Foot bolt: Adjust the height of the brewery equipment, easy to install

Auciliary equipment

 Whether you need a  beer brewing equipment or specific piece brewhouse of beer brewery equipment, SDET engineers are here to get you started. Utilizing the latest 3D & CAD techniques and schematics. SDET has the design resources and expertise to produce the beer brewery equipment you will need to start brewing your special recipes in notice.

We are a professional beer brewing equipment and service supplier, products includes large, medium and beer brewery, hotel, bar and home brewing machine and teaching laboratory equipment.

NDL CRAFT is one of the most professional beer making machine manufacturer and supplier I nthe Spring City-Jinan, We have the most advanced technology and world class at Shendong.

Shendong is integrating with R&D, processing and engineering installation which is specialized in manufacturing beer equipment and facilities, not only suitable for micro and middle breweries, but also becomes the best choice for beer brewing in top hotels, pubs, cabarets, home and other amusement places.The characteristics of this equipment are fabrication at scene, maintain the freshness and nutrition maximum.

NDL CRAFT is one beer brewery equipment manufacturer in Jinan city, Shandong province, China. Was established in 2011, has exported the beer making equipment to more than 80 countries with lots of installation experience. Attended several exhibitions in the past two years, such as CHINA INTERNATIONAL CRAFT BEER EXHIBITION IN NANJING, CHINA BREW CHINA BEVERAGE IN SHANGHAI, CRAFT BREWERS CONFERENCE & BREWEXPO IN AMERICA, and in the coming soon, we will attend DRINKTEC 2017 IN MUNICH in September. Hope to meet you there.

We will make strict QC before packing the beer making machine by professional staff and engineer. Before shipping, they will test and clean the beer brewing equipment firstly, then brush oil to the tanks, and then packed with plastic films, bubble fims, steel frame, etc to make sure it will not rust during sea shipping.

2000l commercial beer brewing equipment beer making machine. If you want to brew your own beer, if you need to buy an good whole and turnkey beer brewing equipment, pls contat us! Shandong Shendong Beer Equipment Company help you come true yourbeer brewing plan!
